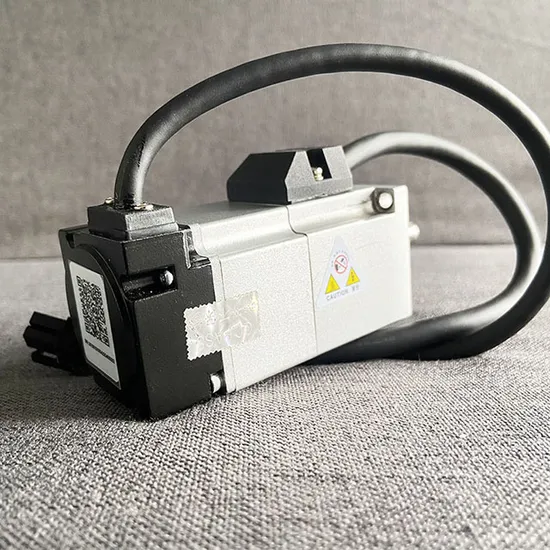

High Performance Mini Servo Motor 40mm 50W BLDC Electric DC Motor with Brake/Encoder/Reducer

• Overview
• Product Type
• Our Advantages
• Product Parameters
• Company Profile
• Certifications
• FAQ

Overview

Basic Info.

Model NO.	SM040R050G30D2LZSqE
Excitation Mode	Permanent Magnet
Function	Control
Casing Protection	Protection Type
Number of Poles	10
Structure and Working Principle	Brushless
Type	Servo Motor Three-Phase
Certification	ISO9001
Brand	Tiger
Rated Torque	0.16n.M
Rated Current	1.4A(RMS)
Protection Rank	IP65
Flange	40mm
Motor Rated Speed	3000r/Min
Rated Output Power	50W
Rated Voltage	220VDC
Transport Package	Carton
Specification	40# 50W 220VDC servo motor without brake
Trademark	Tiger
Origin	China
HS Code	8501510090
Production Capacity	1000000 Sets/Years

Packaging & Delivery

Package Size21.00cm * 13.00cm * 10.00cm Package Gross Weight0.750kg

Product Description

FAQ
Q1: What kind motors you can provide?
A1: For now, our main products include high-voltage servo motors, low-voltage servo motors, hollow frameless motors, servo electric cylinders, linear motors, DD motors, and reduction motors.

Q2: Is there a MOQ for your motors?
A2: No. We can accept one sample for you to test, and the price of sample production will vary by 10% to 30% depending on different styles and batch prices.

Q3: Could you send me a price list?
A3: For our standard products, we can provide you with a price range for your reference only. The price will also vary depending on the quantity of orders and trade terms. If you can share your detailed specifications and order quantity, we will see what quotation we can provide.

Q4: Are you motors reversible?
A4: Yes, servo motors are reversible. They are usually composed of controllers and encoders, which can accurately control position, velocity, and acceleration based on input signals. By changing the polarity of the input signal or the direction of the control signal, the servo motor can reverse the rotation direction, achieving both forward and reverse rotation

Q5: Is it possible for you to develop new motors if we provide the tooling cost?
A5: sure. Please provide detailed requirements such as performance, size, annual quantity, target price, etc. Then we will conduct an evaluation to see if it can be arranged.

Q6:How about your delivery time?
A6: For standard motors, the sample delivery time is 7-14 days, and the batch delivery time is approximately 15-20 days, depending on the order quantity.
For customized motors, the sample delivery time is about 15-30 days; The mass production time is 30-45 days.
Please contact us for final reference.

Q7:What's your warranty terms?
A7: One yea

Product Type

1. Product Type
Immerse yourself in the ingenuity of the 40# 50W 220DC servo motor without brake, a true embodiment of precision and innovation. This motor is a marvel of adaptability, crafted to meet your unique demands with ease. Seamlessly customizable with a range of encoders, it provides the ultimate blend of advanced functionality and flexibility. Perfectly suited to elevate your automation and robotics projects, this motor propels your applications to new pinnacles of excellence.
Our superior motor solutions are the powerhouse driving a spectrum of groundbreaking applications. From energizing cutting-edge industrial robots and propelling AGVs, to refining intelligent manufacturing environments, optimizing CNC machinery, and advancing 3C electronics, our motors stand as the epitome of unmatched performance, infused with innovative brilliance.

2. OEM & ODM Services

Our Advantages

3. Our Competitive Advantages:
3.1. Let our exceptional R&D team bring your visions to life, a dynamic engine of creativity and innovation.Our team leads with pioneering solutions that are both dependable and revolutionary, consistently pushing the envelope of what's possible.
3.2. Our hallmark is reliability, reinforced by a rigorous quality control framework as we relentlessly pursue perfection.

3.3. Enjoy rapid lead times, with standard products typically dispatched within a week, ensuring you remain at the forefront of market demands.
3.4. Delivering exceptional value, our competitively priced offerings are designed to amplify your investment's effectiveness.
3.5. Holding certifications such as ISO9001 and CE, alongside RoHS compliance, we showcase our steadfast dedication to upholding global quality standards.Certified under ISO9001 and CE protocols; our commitment to RoHS directives further underscores our unwavering dedication to quality assurance.
3.6.Witha comprehensive-yearwarranty under standard operating conditions, assured peace of mind is a guarantee, fostering complete trust in your acquisition.
4. Product Features
4.1. Our entire series features an elegant 5-pair pole structure, crafted to enhance performance with precision.

4.2. Revolutionizing industry norms, our motors boast a design that's compact yet powerfully efficient, setting new benchmarks.

4.3. The rotor's embedded magnetic steel design ensures enduring performance stability, effectively averting any detachment.

4.4. Achieve peak efficiency with our motors' seamless encoder compatibility, complemented by exclusive proprietary options.

Harness a competitive edge with unparalleled supporting features that set you apart.

4.5. Available in sophisticated silver and bold black finishes, with an emphasis on the striking elegance of black.

Product Parameters

5. Technical Indicators

Rated output power	50	W
Number of poles	10	P
rated voltage	220	VAC
Rated speed	3000	r/min
Maximum speed	6000	r/min
Rated torque	0.16	N.m
Instantaneous maximum torque	0.48	N.m
Rated Current	1.4	A(rms)
Instantaneous maximum current	4.2	A(rms)
Line back EMF	8.39	V/krpm
Torque coefficient	0.139	N.m/A
Moment of inertia	0.04	Kg.m.10-4
Line resistance	8.4	ohm
Line inductance	7.5	mH
Brake rated voltage	24	VDC
Brake rated power	4.4	W
Brake static torque	>0.32	N.m
Brake moment of inertia	0.003192	Kg.m.10-4
Weight	0.75	Kg
Feedback element	17 bit multi turn absolute value encoder (electrical angle 180 °)
Temperature sensor	NC

6. Functional Features

Working hours	Continuous
Heat resistance	Class F
Body color	Silvery
Cooling method	Natural cooling
Vibration level	V15
Connection method	Direct connection
Installation method	Flange installation
Excitation method	Permanent magnet
Protection method	Fully enclosed ,self-cooling IP65 (except shaft penetration)
Rotation method	Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft
